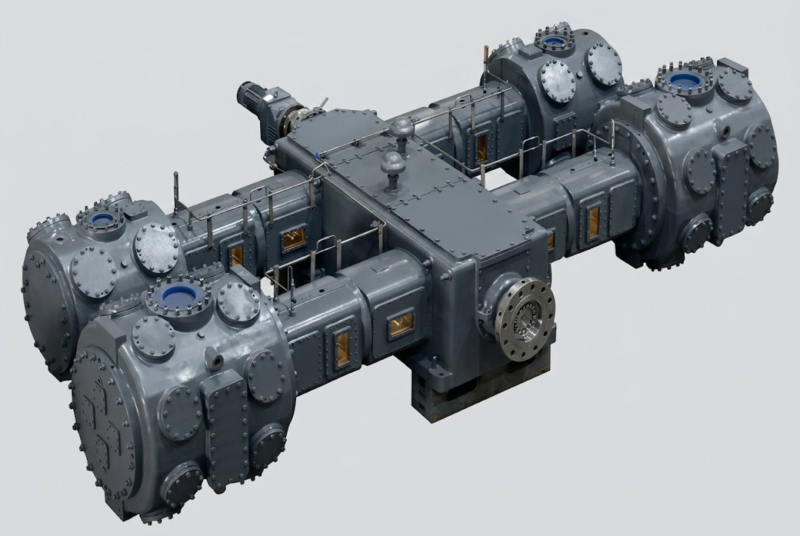

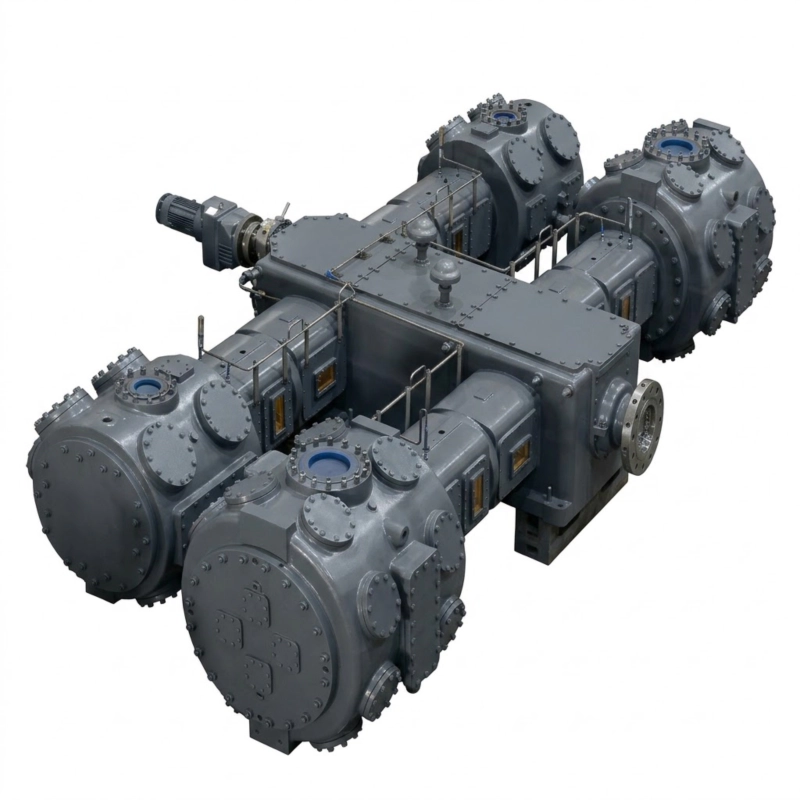

4MW-93/35 Oil-Free Oxygen / Nitrogen Compressor for Air Separation

1. The Macro-Economics of Extreme-Pressure Mega-Volume ASU Gas Processing

The global macroeconomic landscape of heavy industrial manufacturing, aerospace engineering, advanced metallurgy, and next-generation chemical synthesis is currently undergoing a massive, unprecedented technological and infrastructural transformation. This monumental shift is primarily driven by the rapid, aggressive scaling of colossal cryogenic Air Separation Units (ASU). These towering, highly sophisticated thermodynamic separation plants operate continuously, extracting millions of cubic meters of atmospheric air and cryogenically distilling it into extremely high-purity streams of elemental Oxygen (O₂) and Nitrogen (N₂). However, a deeply critical industrial engineering bottleneck immediately emerges during this process: the highly purified gas exiting the cryogenic cold box of a modern ASU typically emerges at relatively low localized pressures (often ranging from just 0.02 MPa to 0.15 MPa). To be commercially viable, chemically reactive, and structurally usable across vast, multi-kilometer industrial parks or municipal grids, this massive volume of low-pressure gas must be forcefully, violently compressed to extreme high-pressure thresholds, frequently demanding an absolute continuous baseload delivery of 3.5 MPa (35 bar).

Achieving an extreme 35 bar at a staggering volumetric flow rate of 93 Normal cubic meters per minute (93 Nm³/min)—which mathematically equates to an immense 5580 Nm³ per hour—requires overcoming diametrically opposed, highly dangerous industrial fluid dynamic challenges that shatter the capabilities of standard commercial equipment. When compressing highly pure Oxygen to 35 bar at 5580 Nm³/h, the absolute primary existential operational threat is catastrophic, instantaneous particle impingement ignition. Oxygen at 35 bar fundamentally transcends being a simple gas; it becomes a hyper-aggressive, incredibly volatile oxidizer. Even a microscopic, trace droplet of hydrocarbon lubricating oil or a high-velocity microscopic particle of standard iron rust can trigger a devastating, unquenchable metal fire that will completely vaporize a heavy compressor station and its surrounding infrastructure within a matter of seconds. Conversely, when the identical mechanical architecture is strategically configured to compress high-purity Nitrogen—an inert but incredibly dry gas that has been completely stripped of all trace atmospheric moisture during the cryogenic distillation process—the engineering challenge shifts entirely to extreme mechanical friction and catastrophic thermal degradation. Ultra-dry nitrogen rapidly degrades standard sealing polymers, causing catastrophic premature blow-by, massive volumetric efficiency losses, and immediate, highly destructive mechanical seizing of the colossal high-pressure compression cylinders.

To flawlessly and continuously process exactly 5580 Nm³/h of either of these extreme cryogenic derivatives to an unyielding 35 bar requires an absolute, uncompromising mastery of advanced aerospace metallurgy, highly rigorous 4-stage thermodynamics, and immense M-Type kinetic vibration control. The 4MW-93/35 Oil-Free Heavy-Duty Compressor represents the absolute paramount pinnacle of high-capacity cryogenic downstream gas transfer technology. Built upon a colossal, highly advanced, vibration-canceling M-Type Horizontal Balanced-Opposed kinematic framework, this unit utilizes a deeply conservative, heavily water-cooled 4-stage thermodynamic architecture combined with an ironclad, strictly enforced API618 and EIGA-mandated 100% absolute oil-free sealing matrix. Deploying the massive 4MW-93/35 permanently and safely secures an unstoppable, heavily fortified pipeline of highly purified pneumatic energy, perfectly and meticulously tailored for the world’s most aggressive and demanding Air Separation mega-projects, integrated steel mills, and massive aerospace launch complexes.

2. Exhaustive Technical Specifications & Operating Envelope

Precision mechanical engineering at a staggering 5580 Nm³/h and an extreme 35-bar scale dictates that the machine’s absolute physical capabilities must be perfectly and mathematically mapped to the incredibly demanding, unforgiving physical laws of multi-stage thermodynamics and massive kinetic inertia. Forcing this staggering physical volume to 35 bar against highly resistant pipeline networks requires immense, unrelenting kinetic energy from a colossal electrical powertrain, typically requiring a main drive motor rating confidently ranging from 850 kW to well over 1100 kW, strictly depending on the exact molecular weight of the gas, the specific inlet suction pressure from the ASU cold box, and the exact geographical altitude of the deployment site. The following highly comprehensive technical parameters deeply define the strict, uncompromising operational envelope of the flagship 4MW-93/35 model, ensuring absolute 24/7/365 baseload reliability for critical national-level industrial infrastructure.

Critical Extreme-Volume Fluid Dynamics & Motor Sizing Notice: Forcing a staggering 5580 Nm³/h continuous volume of highly reactive pure oxygen or ultra-dense nitrogen into a highly restrictive 35-bar pipeline network generates truly immense kinetic inertial forces and introduces highly dangerous internal gas velocity challenges that standard commercial or modified air compressors simply cannot survive for more than a few days. The 1100 kW upper-tier motor specification represents a maximum continuous power draw for extreme heavy-duty ambient conditions. We absolutely mandate a direct, highly technical engineering consultation with our senior fluid dynamics department to configure exact high-pressure pipeline diameter physical specifications and to generate mathematically verified 4-stage thermodynamic performance curves prior to final corporate procurement authorization.

3. The Deep Physics of 4-Stage 35-Bar Thermodynamics & M-Type Kinetic Balancing

Mechanically displacing 93 cubic meters of highly purified industrial gas every single sixty seconds and brutally, continuously forcing it to a staggering 35-bar pressure state demands an engineering and design approach that completely transcends standard, off-the-shelf reciprocating compressor architectures. To fully comprehend the absolute superiority and necessity of the 4MW-93/35, one must deeply understand the unyielding, unforgiving physical laws of adiabatic compression. When 5580 Nm³/h of gas is violently compressed, the immense mechanical work performed by the colossal 850+ kW main electric motor is instantaneously and dramatically converted into intense thermal energy. Attempting to compress gas from roughly atmospheric pressure (1 bar) to a critical 35 bar represents an immense 35:1 total compression ratio. If a heavy-equipment manufacturer attempted this dangerous feat in merely two or three stages at this immense volumetric flow rate, the massive “thermal mass” of the gas would completely, instantly overwhelm standard industrial water-cooling jackets. The localized temperatures at the internal discharge valve plates would violently spike well over 200°C. In a highly reactive oxygen environment, this extreme temperature instantly vaporizes PTFE sealing rings, fundamentally compromises the metallurgical integrity of the cylinder walls, and completely breaches EIGA thermal auto-ignition safety limits, severely risking an immediate, devastating, uncontainable facility explosion.

The highly advanced 4MW-93/35 comprehensively and completely eliminates this highly dangerous thermal bottleneck by employing a deeply conservative, mathematically perfected 4-Stage Compression Architecture. By deploying four entirely distinct, heavily water-jacketed compression cylinders arranged sequentially, the massive total 35:1 ratio is elegantly and safely divided mathematically, yielding an exceptionally low, highly safe inter-stage ratio of approximately 2.43:1 per stage (the mathematical fourth root of 35). In the colossal 1st-stage cylinders, the vast 5580 Nm³/h volume of incoming gas is gently compressed to just ~2.43 bar. The heated gas is then forcefully expelled into a massive, heavy-duty shell-and-tube water intercooler, instantly stripping the intense adiabatic heat away and returning the gas to near-ambient temperature (≤ 40°C). This incredibly dense, cooled gas then forcefully enters the 2nd-stage cylinder, compressing to roughly 5.9 bar. It is immediately cooled again in the second massive intercooler. It then violently enters the 3rd stage, reaching roughly 14.3 bar, followed by another crucial, massive heat-rejection phase. Finally, this highly dense, 14.3 bar gas enters the heavily forged, ultra-thick 4th-stage high-pressure cylinder, thrusting it rapidly to the final extreme target of 35.0 bar. This deeply calculated, ultra-conservative stepped thermodynamic cycle mathematically guarantees that at no single point in the entire process does the gas ever approach dangerous temperature limits, strictly maintaining temperatures well below the strict EIGA-mandated maximum of 130°C for pure oxygen processing.

Beyond highly advanced thermodynamics, safely managing the ferocious kinetic energy of an 850+ kW motor violently driving massive forged pistons against an unyielding 35-bar wall of pneumatic backpressure represents one of the most severe mechanical challenges in global heavy industry. The alternating dynamic rod loads acting on the crankshaft are absolutely colossal, easily capable of literally tearing standard vertical or V-type commercial compressor frames apart through severe, compounding low-frequency kinetic vibration. The highly advanced M-Type Horizontal Balanced-Opposed Kinematic Frame is explicitly designed from the foundation up to conquer this exact brutal kinetic punishment. The colossal foundational crankcase is poured from ultra-high-density nodular cast iron. By intelligently arranging the heavy cylinders in a geometrically balanced layout horizontally across the massive forged steel crankshaft, the heavy reciprocating masses (massive pistons, heavy cast crossheads, ultra-thick connecting rods) move in a carefully orchestrated physical sequence directly opposite each other. This brilliant structural geometric configuration mathematically cancels out both the primary and secondary shaking forces exceptionally effectively. The final result is a colossal megawatt-class machine that operates exceptionally smoothly, almost entirely devoid of destructive low-frequency vibration, which vastly extends the operational lifecycle of the critical main bearings, crosshead guide blocks, and the delicate surrounding high-pressure utility piping networks attached to the massive ASU.

4. Advanced Material Science: Defeating 35-Bar Extreme Oxygen Oxidation and Ultra-Dry Nitrogen Embrittlement

When configuring the identical, massive 4MW-93/35 frame for processing Pure Oxygen exiting the cold box, the absolute primary engineering enemy shifts entirely to catastrophic particle impingement ignition. At an extreme pressure of 35 bar, oxygen transcends being merely a gas and becomes a hyper-aggressive, violent oxidizer. If ordinary carbon steel or standard cast iron is utilized anywhere within the pressurized high-velocity gas path, microscopic flakes of iron oxide (rust) inevitably detach over time due to the immense 5580 Nm³/h high-pressure flow. Propelled at extreme aerodynamic velocities within the pipeline, these rust particles become highly incendiary projectiles. Upon striking a pipe bend, valve seat, or manifold connection, the immense kinetic impact sparks an instantaneous, devastating metal fire that cannot be extinguished by normal means. To entirely and unconditionally neutralize this terrifying industrial threat, our strict EIGA-compliant oxygen variants rigidly utilize heavily forged, solid billets of premium, medical-grade 316L austenitic stainless steel for all stage 2, 3, and 4 high-pressure cylinders and interconnecting manifolds. The extreme chromium and high nickel content mathematically guarantees absolute chemical immunity to oxygen-induced oxidation, ensuring perfect long-term safety.

Conversely, when processing highly purified Nitrogen from a massive ASU, the gas is exceptionally inert, but it is also brutally, artificially dry. Because all atmospheric moisture has been cryogenically frozen and completely removed during the air separation process, standard composite seals that rely heavily on trace atmospheric moisture for basic boundary layer lubrication will aggressively rapidly disintegrate into dust within mere hours of startup. To successfully address the severe sealing requirements for both of these highly challenging gases at 35 bar without utilizing any highly dangerous liquid oil, we purposefully deploy a highly proprietary, deeply guarded advanced materials matrix:

• Hyper-Density PTFE/Bronze/Glass-Fiber Matrix Seals: Liquid lubricating oil is strictly, legally prohibited by EIGA codes for oxygen (due to extreme, uncontrollable fire hazard). Creating a moving, dynamic hermetic seal against 35 bar across massive cylinder bores relies entirely on highly advanced dry composite technology. We utilize a hyper-dense matrix of virgin Polytetrafluoroethylene (PTFE) that is heavily structurally reinforced with aerospace-grade milled glass fiber and high-grade bronze powder. This proprietary blend creates a remarkably rigid, self-lubricating labyrinth seal capable of containing 35 bar across the massive piston surfaces without any dangerous pressure extrusion, while actively conducting intense frictional heat safely away from the sealing interface directly to the surrounding water-cooled cylinder walls.
• Extreme-Duty PEEK Valve Assemblies: The high-pressure gas valves are the literal beating heart of the massive compressor, violently snapping open and slamming shut against an unyielding 35-bar wall of pneumatic backpressure millions of times per month. Traditional cheap stainless steel valves shatter rapidly due to severe high-cycle impact fatigue and violent aerodynamic flutter at these massive 5580 Nm³/h volumes. We completely avoid this catastrophic failure mode by employing massively oversized valve plates machined entirely from raw, virgin PEEK (Polyether ether ketone)—an incredibly advanced semi-crystalline thermoplastic aerospace polymer offering totally unmatched flexural impact strength, extreme fatigue resistance, and absolute chemical inertness to high-pressure pure oxygen.
• API-618 Type-C Elongated Distance Pieces: To rigorously enforce absolute structural separation between the heavily oil-lubricated lower cast-iron crankcase (where the massive forged crankshaft spins in hundreds of liters of oil) and the highly volatile upper gas cylinders, we utilize specialized, extra-long Type-C distance pieces. Crucially, this heavily engineered structural component is physically longer than the complete, maximum up-and-down physical stroke of the massive piston rod. Therefore, the heavily wetted lower section of the piston rod that inevitably contacts oil down in the crankcase will absolutely never physically travel high enough to enter the highly sensitive gas compression chamber above it, physically ensuring zero hydrocarbon transfer to your delicate chemical processes or highly reactive oxygen streams.

5. Core Operational Advantages and Total Cost of Ownership (TCO) Annihilation

In massive heavy manufacturing, integrated metallurgical facilities, and colossal aerospace launch complexes, capital-intensive heavy equipment must be ruthlessly and mathematically evaluated on its true Total Cost of Ownership (TCO) across a grueling 15-to-25-year operational lifecycle. The 4MW-93/35 is holistically engineered from the initial CAD drawing board to systematically dismantle the massive OPEX burdens associated with continuous 35-bar, mega-volume cryogenic downstream gas transfer, offering strategic operational advantages that directly and massively amplify plant profitability.

6. Strategic Synergies: Integrated Downstream Medical and Chemical Packaging Solutions

As a highly comprehensive global industrial engineering provider, we fully recognize that extracting, purifying via massive ASUs, and vigorously compressing massive volumes of elemental gases to 35 bar is merely the primary foundational phase of the complete industrial supply chain. When highly purified Nitrogen is utilized in pharmaceutical manufacturing, or when massive volumes of Medical-Grade Oxygen are processed for global healthcare networks, the highly refined final liquid or gas derivative must ultimately be securely, flawlessly packaged in high-barrier rigid polymer containers or highly durable specialized bottles for secure global consumer and hospital distribution.

To fully support our major EPC clients’ complete vertical integration strategies—from raw cryogenic gas compression entirely through to final packaged medical or chemical product—we proudly design, manufacture, and offer complementary, ultra-high-precision polymer processing equipment. For heavy industrial facilities that are extracting high-value pharmaceutical solvents utilizing high-pressure nitrogen blanketing, or bottling specific medical liquids derived from these highly purified processes, we highly recommend seamlessly integrating our advanced Blow Molding Machine technology directly into your final downstream automated packaging lines. This state-of-the-art injection stretch blow molding mechanical system is the definitive, globally recognized solution for manufacturing absolutely leak-proof, highly sterile, high-barrier medical bottles and precision rigid pharmaceutical packaging. Utilizing this advanced packaging machinery ensures that the extremely high-value medical and chemical derivatives originating from your heavy gas processing plant are safely, perfectly, and hermetically packaged for global distribution without any conceivable risk of chemical degradation, hazardous leakage, or atmospheric contamination during complex global transit.

7. Extreme Industry 4.0 Automation, O₂ Fire Safety Integration, and SCADA Connectivity

Relying on traditional manual human operator oversight for a colossal mechanical system violently compressing an astonishing 5580 cubic meters of hyper-reactive Oxygen or suffocating pure Nitrogen to 35 bar every single hour is an utterly unacceptable, catastrophic safety risk in the modern industrial era. To absolutely mitigate all operational risks, the massive 4MW-93/35 is rigorously, strictly governed by a state-of-the-art, highly fortified Industry 4.0 digital architecture. The central digital brain is a premium, ultra-high-speed programmable logic controller, typically deploying the advanced Siemens S7-1500 series, Allen-Bradley ControlLogix, or equivalent high-end ABB hardware, renowned globally for absolute reliability in harsh chemical environments. Because high-pressure Oxygen is incredibly hyper-reactive, all local sensor arrays, heavy pneumatic actuators, and the heavy-duty PLC cabinet itself can be fully certified to strict ATEX Zone 1 / Zone 2 Ex d (Flameproof) standards to completely eliminate any potential ignition source. The primary PLC provides a highly intuitive, multi-lingual touchscreen HMI interface for flawless, rapid operator interaction.

The central Siemens PLC is continuously fed live, micro-second data from a dense array of specialized extreme-pressure industrial sensors. High-precision RTDs actively monitor gas temperatures at the intake, inter-stage, and discharge points of all four compression stages simultaneously. Extreme high-pressure transmitters, precision mass flow meters, and highly sensitive kinetic vibration monitors (often utilizing Bently Nevada systems) on the massive crossheads ensure the heavy machine operates flawlessly within its designed mechanical envelope. This exhaustive digital sensor matrix enables a highly sophisticated, fail-safe multi-tiered safety protocol. Tier 1 is the “Pre-Alarm” state. Tier 2 is the “Automated Emergency Shutdown (ESD)”. If parameters severely breach critical limits (e.g., 4th-stage oxygen discharge temp spikes rapidly above 130°C, violating EIGA codes, or a 37 bar overpressure event indicates a dangerous downstream pipeline blockage), the PLC instantaneously severs main 850+ kW power, violently activates massive, pneumatically-piloted blowdown valves to safely, rapidly vent all trapped 35-bar gas to a safe exterior flare or scrubber system, and mechanically isolates the massive machine to completely neutralize any hazard. Furthermore, utilizing standard industrial communication protocols such as Modbus TCP/IP via highly secure fiber-optic networks, the massive compressor skid seamlessly integrates into the mega-plant’s higher-level DCS (Distributed Control System), enabling secure, unmanned “lights-out” operation from central control rooms located kilometers away.

8. Deep-Dive Industry Use Cases & Mega-Volume Application Scenarios

The unmatched combination of a highly robust 35-bar discharge pressure, an immense 5580 Nm³/h continuous flow rate, and a fully automated, extremely strict 4-stage thermal safety architecture makes the 4MW-93/35 the definitive, undisputed solution for powering the world’s most aggressive, mega-scale heavy manufacturing, aerospace, and advanced medical processes.

9. Global Procurement, Complex Logistics, and Heavy Site Civil Engineering

Executing a successful, highly profitable procurement strategy for a colossal 5580 Nm³/h, ~850+ kW, 4-stage, 35-bar heavy industrial machine requires exact, uncompromising engineering diligence, extending far beyond simply signing a standard B2B purchase order. The physical, real-world installation of the massive 4MW-93/35 requires incredibly strict, highly advanced heavy-duty site civil engineering preparation. When dealing with a colossal reciprocating mass pushing against an unrelenting 35 bar of immense aerodynamic resistance at staggering physical speeds, driven by a massive megawatt-class motor, the fundamental structural engineering focus shifts entirely to safely managing immense dynamic rod loads and highly destructive kinetic vibration that can easily destroy nearby highly sensitive cryogenic ASU infrastructure.

Proper, rigorously verified heavy civil engineering preparation is absolutely mandatory. While the highly advanced M-Type balanced geometry naturally cancels out primary and secondary shaking forces exceptionally well, the massive overall static and dynamic weight of the colossal skid strictly requires a deeply excavated, highly dedicated, vibrationally isolated reinforced concrete foundation block. During the initial technical procurement phase, our senior engineering team provides exhaustive, dimensionally accurate 3D civil foundation CAD blueprints directly to your local EPC contractors. The heavy concrete block must be poured precisely, incorporating deep-set, ultra-heavy-duty J-style steel anchor bolts and specialized high-strength chemical epoxy grout. The physical mass of the concrete block is mathematically calculated by our mechanical engineers to be typically 5 to 7 times the total massive static weight of the entire compressor skid. This immense concrete mass is strictly required to effectively absorb and completely nullify any residual low-frequency kinetic vibrations that would otherwise literally tear apart the surrounding factory’s highly dangerous 35-bar high-pressure pure oxygen pipework.

For international global logistics, our highly optimized standard manufacturing lead time is exceptionally lean for heavy-duty customized ASU equipment of this unprecedented scale—averaging merely 140 to 160 days from final approved corporate order confirmation to comprehensive, highly rigorous Factory Acceptance Testing (FAT) at our advanced manufacturing facility. To mathematically guarantee absolute zero downtime over the machine’s grueling multi-decade lifecycle, we strongly advise all international EPC clients to heavily invest in our comprehensive “5-Year Turnkey Operational Spare Parts Kit” concurrently. By actively shipping highly dense, critical consumable parts (such as massive PTFE heavy piston rings, oversized high-pressure PEEK valve assemblies, and delicate 4th-stage packing sealing sets) inside the original heavy-timber shipping crating alongside the main massive compressor, major clients entirely bypass all future international shipping costs, complex border customs delays, and the highly costly bottlenecks of reactionary cross-border emergency procurement cycles.

10. Executive Technical FAQ: 4MW-93/35 Mega-Volume 35-Bar ASU Deployment

To fully actively support rapid, extremely deep engineering evaluation by massive global EPC firms, heavy metallurgy fabrication planners, and cryogenic chemical process designers, our senior technical team has exhaustively distilled the ten most critical, highly complex technical inquiries regarding the global deployment of the massive 5580 Nm³/h, 35 bar 4MW-93/35 compressor system for Air Separation Unit environments.

Command Mega-Scale Air Separation Compression with Absolute Reliability

Master the most critical, highly demanding cryogenic derivative gases in the global industrial sector. Forcefully heavily power your colossal Basic Oxygen Furnaces, extreme-pressure Pure Nitrogen industrial blanketing pipelines, and massive centralized medical oxygen utility grids with the highly unrelenting 5580 Nm³/h, 35-bar extreme capacity of the 4MW-93/35. Secure world-class 100% absolute oil-free 4-stage EIGA-compliant compression, highly unbeatable heavy-duty M-Type massive endurance, and incredibly disruptive factory-direct B2B heavy equipment pricing today.

Request a Factory-Direct Technical Quote

Our dedicated, highly experienced senior high-pressure fluid dynamics engineering team will rigorously meticulously review your specific massive ASU flow requirements, exact highly purified gas composition, critical 35-bar terminal pipeline velocity metrics, and massive site civil engineering constraints, responding strictly confidently within 24 hours with perfectly mathematically verified 4-stage severe-duty sizing data, exact heavy 3D CAD deep foundation schematics, and highly fully transparent B2B global procurement pricing.
