3ZW-47/15 Oil-Free Oxygen Compressor
3ZW-47/15 100% oil-free oxygen compressor (2820 Nm³/h, 15 bar). 3-stage mega-volume booster for syngas gasification & heavy smelting. API618 compliant.
1. The Macro-Economics of Mega-Volume Oxygen Processing & Comprehensive Product Overview
As the global industrial sector relentlessly scales toward unprecedented production capacities, the reliance on high-volume, medium-high pressure pure oxygen has become the absolute cornerstone of modern heavy manufacturing. The era of relying on sprawling fleets of liquid oxygen (LOX) trucks and highly expensive cryogenic storage facilities is rapidly coming to a close for top-tier industrial complexes. Mega-facilities are aggressively transitioning to massive on-site Air Separation Units (ASU) and colossal Vacuum Pressure Swing Adsorption (VPSA) plants to generate oxygen at a fraction of the cost. However, a monumental engineering paradox emerges: these massive generators produce gas at near-atmospheric pressures. Pushing this immense volume of highly reactive gas—often required for advanced coal-to-chemical gasification or high-intensity metallurgical smelting—to a critical process pressure of 1.5 MPa (15 bar) creates one of the most severe thermodynamic and kinetic bottlenecks in modern industrial fluid dynamics.
Enter the 3ZW-47/15 Oil-Free Oxygen Compressor. This monolithic achievement in reciprocating pneumatic engineering represents the ultimate heavy-duty solution for bridging the gap between mega-scale generation and medium-high pressure consumption. Operating on an incredibly robust, vibration-nullifying 3-Stage Z-Type kinematic framework, the 3ZW-47/15 is meticulously engineered to ingest a vast ocean of low-pressure gas and safely, continuously boost it to exactly 1.5 MPa (15.0 bar / approx. 217.5 psi). It accomplishes this while simultaneously processing a staggering volumetric flow rate of 47 Normal cubic meters per minute (47 Nm³/min), which mathematically translates to an immense 2820 Nm³ per hour (or over 67,680 Nm³ per standard 24-hour cycle). Compressing highly reactive pure oxygen to 15 bar at this breathtaking massive scale requires an absolute mastery of adiabatic heat management, unyielding cast-iron structural rigidity, and perfect metallurgical precision.
What decisively separates the 3ZW-47/15 from cheaper, conventional market alternatives is its highly conservative, mathematically perfected 3-stage thermodynamic architecture combined with an ironclad 100% oil-free purity guarantee. At a volume of 2820 Nm³/h, attempting to reach 15 bar in a standard two-stage configuration pushes the gas temperatures dangerously close to the EIGA auto-ignition limit. By intelligently dividing the compression work across three distinct stages, we guarantee an immense thermal safety margin. Furthermore, by entirely eliminating hydrocarbon-based liquid oil from the compression cylinders using advanced aerospace PTFE/Bronze composite seals and employing unyielding structural isolation via API618 extended distance pieces, this unit ensures perfect, uncontaminated gas delivery. For EPC contractors, petrochemical plant designers, and global procurement directors, deploying the 3ZW-47/15 represents a highly strategic economic maneuver: permanently securing an unstoppable, heavily armored pipeline of pneumatic energy while entirely neutralizing the severe fire hazards associated with heavy oxygen processing.
Figure 1: The 3ZW-47/15 Heavy-Duty 3-Stage Assembly – Delivering an unprecedented 2820 Nm³/h continuous flow at 15 bar for global chemical, metallurgical, and medical mega-projects.
2. Exhaustive Technical Specifications & Operating Envelope
Precision mechanical engineering at a 2820 Nm³/h scale dictates that the machine’s capabilities must be perfectly mapped to the incredibly demanding laws of medium-high pressure thermodynamics. Forcing this volume to 15 bar requires immense kinetic energy from a massive powertrain. The following highly comprehensive technical parameters define the strict operational envelope of the 3ZW-47/15 model. Designed explicitly for extreme-duty, continuous 24/7/365 baseload operation, this unit is built to strictly adhere to international API618 design codes for heavy machinery and EIGA IGC 10/07/E rigorous safety mandates for high-capacity oxygen environments.
| Technical Parameter | Nominal Value / Engineering Specification |
|---|---|
| Model Designation Architecture | 3ZW-47/15 (Mega-Capacity 3-Stage Z-Type Series) |
| Approved Compression Mediums | Pure Oxygen (O₂), Pure Nitrogen (N₂), High-Purity Dry Air |
| Volumetric Flow Rate (Capacity) | 47.0 Nm³/min (2820 Nm³/hour) – Base-load Continuous Duty |
| Nominal Suction (Inlet) Pressure | Atmospheric (0 MPa) to 0.2 MPa (Dynamically matched to massive ASU/VPSA output) |
| Target Discharge Pressure | 1.5 MPa (15.0 bar / approx. 217.5 psi) |
| Thermodynamic Architecture | Strict 3-Stage Compression (Mandatory for immense thermal safety margin at 47 Nm³/min) |
| Kinematic Frame & Layout | Heavy-Duty Z-Type Multi-Cylinder (Optimum primary dynamic force balancing) |
| Lubrication Integrity | 100% Absolute Oil-Free (Utilizing aerospace-grade high-density PTFE/Bronze seals) |
| Thermal Management Protocol | Massive Shell-and-Tube Water Cooling (Intercoolers 1-2, 2-3 & Final Aftercooler) |
| Main Drive Motor Power | 250 kW to 315 kW (Dependent on exact site inlet pressure, fluid density, and altitude) |
| Manufacturing Compliance Codes | API618, EIGA IGC 10/07/E, ATEX (Optional), ISO 9001:2015, CE / GOST-R |
Critical Mega-Volume Fluid Dynamics & Motor Sizing Notice: Forcing an immense 2820 Nm³/h volume of highly reactive oxygen into a 15-bar pipeline generates staggering kinetic forces and introduces severe gas velocity challenges. The 315 kW motor specification represents a maximum continuous power draw for extreme conditions. We absolutely mandate a direct, highly technical consultation with our senior fluid dynamics department to configure exact pipeline diameter specifications (to prevent catastrophic friction ignition) and to generate verified 3-stage thermodynamic performance curves prior to final corporate procurement.
3. The Deep Physics and Mechanics of 3-Stage 15-Bar Thermodynamics
Mechanically displacing 47 cubic meters of pure oxygen every sixty seconds and brutally forcing it to a 15-bar pressure state demands an engineering approach that completely rejects standard, cost-cutting compressor designs. To fully comprehend the superiority of the 3ZW-47/15, one must understand the unyielding laws of adiabatic compression. When 2820 Nm³/h of gas is compressed, the immense mechanical work performed by the ~315 kW motor is instantly converted into intense thermal energy. While smaller compressors can sometimes safely achieve 15 bar in just two stages, doing so at a massive 2820 Nm³/h volume generates an immense “thermal mass.” If attempted in only two stages, the localized temperatures at the discharge valves would violently spike to well over 160°C. In a 15-bar pure oxygen environment, this extreme temperature rapidly degrades PTFE seals and borders dangerously close to the auto-ignition threshold, risking a devastating metal fire.
The 3ZW-47/15 comprehensively eliminates this highly dangerous thermal bottleneck by employing a highly conservative, mathematically perfected 3-Stage Compression Architecture. The total 15:1 compression ratio is elegantly and safely divided across three entirely distinct compression cylinders, yielding a highly safe inter-stage ratio of roughly 2.4:1 per stage.
The 3-Stage Cycle: In the massive 1st-stage cylinder, the vast 2820 Nm³/h volume of incoming gas is compressed to roughly 2.4 bar. The gas is forcefully expelled into a massive shell-and-tube water intercooler, instantly stripping the heat away and returning the gas to near-ambient temperature (≤40°C). This dense, cooled gas then enters the 2nd-stage cylinder, where it is compressed to approximately 6.0 bar. Again, it is immediately cooled in a second massive intercooler. Finally, this highly dense, 6.0 bar gas enters the 3rd-stage cylinder, where the immense power of the machine thrusts it to the final target of 15.0 bar. It passes through a final, high-pressure aftercooler before exiting the skid. This deeply calculated, conservative stepped cycle mathematically guarantees that at no point does the pure oxygen ever approach dangerous temperature limits, strictly maintaining temperatures well below the EIGA-mandated maximum of 130°C.

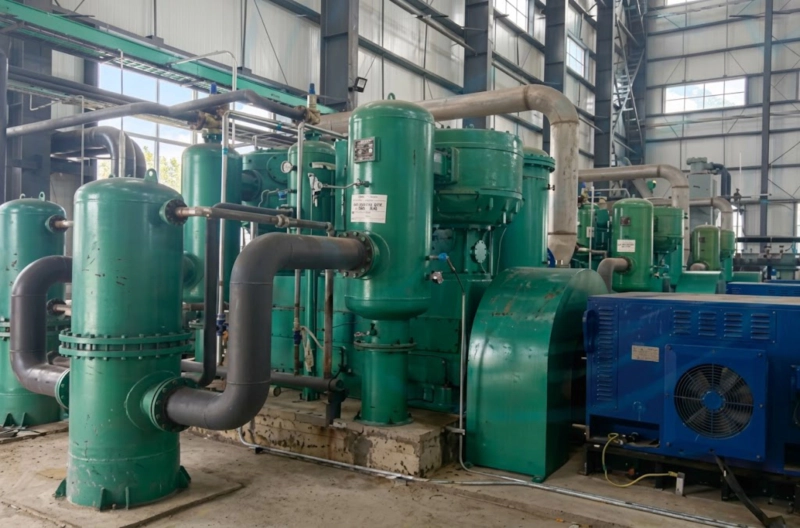

Figure 2: Real-world heavy operational deployment explicitly demonstrating the towering structural rigidity, the massive multi-stage intercooler banks, and the extremely heavy flanged piping arrays rigorously required to safely contain 15 bar pressures at 2820 Nm³/h.
Beyond thermodynamics, managing the kinetic energy of a 315 kW motor driving massive pistons is a monumental mechanical challenge. The pistons must overcome immense 15-bar backpressure, generating punishing alternating dynamic rod loads. The Z-Type Kinematic Frame is explicitly designed to absorb this brutal punishment. The foundation crankcase is poured from ultra-high-density nodular cast iron. By intelligently orienting the massive cylinders, the machine inherently balances the primary inertial forces, completely minimizing destructive low-frequency kinetic vibrations. This ensures the massive kinetic shockwaves are transmitted harmlessly downward into the heavy concrete foundation, resulting in a 315 kW mega-machine that runs exceptionally smoothly, vastly extending the operational lifespan of the main bearings, crossheads, and delicate surrounding utility piping.
4. Advanced Material Science: Defeating 15-Bar High-Velocity Oxidation and Extreme Friction

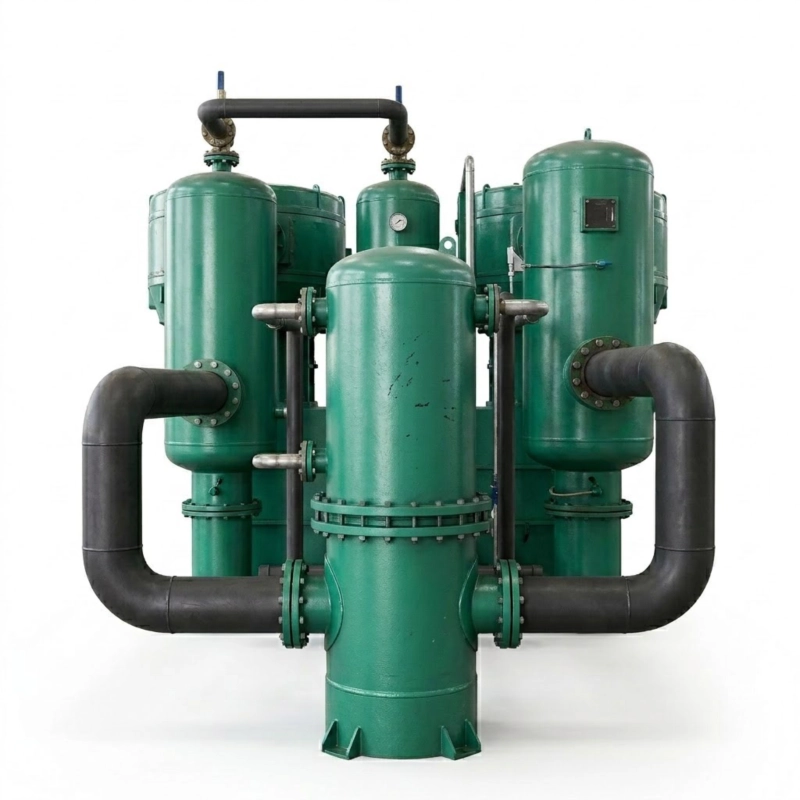

Figure 3: Close-up of the massively anchored 3-stage structural design and the extremely high-grade, totally oxidation-immune 316L stainless steel forged manifolds required to safely transport 2820 Nm³/h of highly reactive oxygen at 15 bar.
Operating at 15 bar drastically changes the fundamental physical behavior of pure oxygen. At this medium-high pressure state combined with a massive 2820 Nm³/h flow velocity, the gas becomes incredibly dense and highly aggressive. The ignition temperature of standard metals plummets. If ordinary carbon steel were utilized anywhere in the pressurized gas path, microscopic flakes of iron oxide (rust) would inevitably detach over time. Propelled at extreme velocities within the pipeline, these rust particles become incendiary projectiles. Upon striking a pipe bend or valve seat, the sheer kinetic impact sparks an instantaneous, devastating metal fire—a phenomenon strictly defined as particle impingement ignition. To entirely neutralize this terrifying industrial threat, our proprietary manufacturing protocol relies on a rigorously guarded matrix of aerospace-grade alloys and composites:
- Solid Forged Austenitic 316L Stainless Steel Cylinders: Standard cast iron is completely banned for all oxygen-wetted compression blocks. The cylinders are heavily forged and machined from raw, solid billets of premium, medical-grade 316L austenitic stainless steel. The extreme chromium, nickel, and molybdenum content guarantees absolute, 100% chemical immunity to pressurized oxygen-induced oxidation. The massive internal bores undergo multi-stage CNC diamond honing to achieve a flawless microscopic mirror-finish (Ra < 0.4 µm), completely eliminating friction hot-spots and ensuring zero particle generation.
- High-Density PTFE/Bronze Matrix Seals: Because liquid lubricating oil is strictly prohibited by EIGA/API codes for pure oxygen, creating a hermetic seal against 15 bar relies entirely on dry composite technology. We utilize an advanced, hyper-dense matrix of Polytetrafluoroethylene (PTFE) structurally reinforced with high ratios of aerospace carbon fiber and bronze powder. This proprietary blend creates a rigid, labyrinth seal capable of containing 15 bar across the massive 2820 Nm³/h piston surface without extrusion, while the bronze actively conducts intense frictional heat away from the sealing interface.
- Extreme-Duty PEEK Valve Assemblies: The gas valves act as the heart of the system, violently snapping open and slamming shut against an unyielding 15-bar wall of backpressure millions of times a month. Traditional stainless steel valves shatter rapidly due to severe high-cycle impact fatigue and violent aerodynamic flutter at these massive volumes. We employ oversized valve plates machined from raw, virgin PEEK (Polyether ether ketone)—an advanced semi-crystalline thermoplastic aerospace polymer offering unmatched impact strength, extreme fatigue resistance, and total inertness to pure oxygen.
5. Core Operational Advantages and Total Cost of Ownership (TCO) Annihilation
In massive heavy manufacturing, petrochemical synthesis, and healthcare complexes, heavy equipment must be ruthlessly evaluated on its true Total Cost of Ownership (TCO) across a grueling 15-to-20-year lifecycle. The 3ZW-47/15 is holistically engineered from the drawing board to systematically dismantle the massive OPEX burdens associated with continuous 15-bar, mega-volume gas transfer, offering strategic operational advantages that directly amplify plant profitability.
100% Oil-Free Absolute EIGA Guarantee
We mandate absolute, zero compromise on 15-bar gas purity. The strict structural separation utilizing specialized, elongated API-618 distance pieces between the heavily lubricated lower cast-iron crankcase and the volatile 15-bar stainless steel upper compression cylinders ensures that the massive 2820 Nm³/h gas stream remains entirely immune to hydrocarbon aerosol contamination. This totally eliminates the need for highly expensive downstream coalescing filters and guarantees pristine purity for highly sensitive catalytic reactors or critical hospital respiratory grids.
Massive Energy Savings via 315 kW VFD Integration
Demand for 15-bar oxygen fluctuates wildly based on daily metallurgical production quotas or chemical batch processing. Running a massive ~315 kW motor at 100% fixed speed 24/7 is financially ruinous. The 3ZW-47/15 seamlessly integrates with top-tier Variable Frequency Drives (VFD). The intelligent PLC dynamically scales the heavy compressor’s RPM down in real-time to exactly match downstream pipeline demand. This entirely eliminates wasteful, incredibly dangerous 15-bar gas venting to the atmosphere and slashes annual electrical OPEX by hundreds of thousands of dollars.
Ultra-Stable Z-Type Foundation Footprint
Unlike sprawling, massive horizontal opposed mega-compressors that consume vast amounts of highly valuable factory floor space and require colossal foundations to handle 3-stage footprints, our unit leverages an exceptionally intelligent Z-Type architecture. This multi-cylinder arrangement drastically reduces the overall horizontal footprint while maintaining unparalleled straight-line kinetic stability. This allows aging mega-facilities to achieve monumental 2820 Nm³/h capacity upgrades within tightly confined utility rooms, drastically saving civil engineering costs.
6. Extreme Industry 4.0 Automation, Safety Integration, and ATEX/Winterization Capabilities
Relying on manual, human operator oversight for a heavy machine violently compressing an astonishing 2820 cubic meters of gas to 15 bar every hour is an utterly unacceptable, catastrophic safety risk. The 3ZW-47/15 is rigorously governed by a state-of-the-art, highly fortified Industry 4.0 digital architecture. The central digital brain is a premium, ultra-high-speed programmable logic controller (typically Siemens S7-1500 series or equivalent high-end ABB hardware). If deployed in hazardous petrochemical environments (like Syngas production), the entire machine—including the massive ~315 kW motor, sensor arrays, and PLC cabinet—can be fully certified to strict ATEX Zone 1 / Zone 2 Ex d (Flameproof) standards. The PLC provides a highly intuitive, bilingual (English/Russian/Spanish) touchscreen HMI interface for flawless operator interaction.
The central PLC is continuously fed live, micro-second data from a dense array of specialized high-pressure industrial sensors. High-precision RTDs monitor gas temperatures at the intake, inter-stage, and discharge of all three compression stages. Crucially, pressure transmitters and vibration monitors on the massive crossheads ensure the machine operates flawlessly. This sensor matrix enables a highly sophisticated multi-tiered safety protocol. Tier 1 is the “Pre-Alarm” state. Tier 2 is the “Automated Emergency Shutdown (ESD)”. If parameters severely breach critical limits (e.g., 3rd-stage discharge temp > 130°C, or a 16 bar overpressure event), the PLC instantaneously kills main power, activates massive pneumatic blowdown valves to safely and rapidly vent trapped 15-bar gas to a safe exterior flare, and mechanically isolates the machine to completely neutralize any hazard.
For extreme deployments in the Russian/CIS market, the machine can be equipped with a comprehensive “Siberian Winterization Package.” This includes ATEX-rated immersion block heaters for the crankcase, heat-tracing on all massive water intercooler manifolds to prevent freezing during standby, and ruggedized IP65/ATEX control cabinets with internal space heaters. Furthermore, the entire electrical system is fully SCADA (Supervisory Control and Data Acquisition) ready out of the box. By utilizing standard industrial communication protocols such as Modbus TCP/IP, Profinet, or RS485 RTU via secure fiber-optic lines, the massive compressor skid seamlessly integrates into the mega-plant’s higher-level Distributed Control System (DCS), enabling highly secure, “lights-out” operation from central control rooms kilometers away.
7. Deep-Dive Industry Use Cases & Mega-Volume Application Scenarios
The unmatched combination of a highly robust 15-bar discharge pressure, an immense 2820 Nm³/h continuous flow rate, and a fully automated 3-stage thermal safety architecture makes the 3ZW-47/15 the definitive solution for powering the world’s most aggressive heavy manufacturing and advanced chemical processes.
Figure 4: The 3ZW-47/15 serving as the unrelenting centralized mega-volume booster for a massive integrated chemical and manufacturing complex.
Case Study A: Coal-to-Chemical / Syngas Gasification Networks
The Extreme Challenge & Solution: In modern advanced coal gasification and synthesis gas (Syngas) production, pulverizing coal and reacting it to create synthetic fuels requires injecting absolutely massive volumes of pure oxygen directly into high-pressure gasifiers. These gasifiers typically operate at highly elevated pressures (frequently requiring 15 bar or higher feed oxygen) to maximize thermal efficiency and carbon conversion. A single gasifier may require thousands of cubic meters of oxygen per hour. Deployed in parallel banks, the ATEX-certified 3ZW-47/15 acts as the ultimate heavy-duty feed engine. Taking oxygen from a sprawling ASU, it violently injects 2820 Nm³/h per machine into the gasifier networks at an unyielding 15 bar. The 3-stage cooling ensures 24/7/365 uninterrupted operation, securing the multi-million-dollar yield of the chemical plant.
Case Study B: Heavy Metallurgical Non-Ferrous Smelting
The Extreme Challenge & Solution: In massive copper, zinc, and lead smelting operations, highly enriched oxygen is blasted into massive flash smelting furnaces to violently oxidize sulfur and separate the pure metal. This process requires an astonishingly high volume of continuous oxygen, often delivered through long, complex pipeline networks that require an initial injection pressure of 12 to 15 bar to overcome friction loss and guarantee deep penetration into the molten bath. The 3ZW-47/15 is perfectly engineered for this brutal environment. Its 100% oil-free purity ensures no hydrocarbon contamination enters the molten metal, while the massive 2820 Nm³/h capacity effortlessly fulfills the insatiable thermal demands of the flash furnaces, drastically accelerating production timelines and slashing energy costs per ton of metal produced.
Case Study C: Mega-Hospital Centralized Oxygen Pipelines
The Extreme Challenge & Solution: Modern mega-hospitals and sprawling multi-building medical campuses are completely abandoning expensive LOX deliveries in favor of colossal on-site PSA/VPSA oxygen generation. However, pushing life-saving oxygen through miles of complex piping across a huge campus requires a high initial centralized pressure (often 10 to 15 bar), which is then safely stepped down via pressure regulators at each individual building. The 3ZW-47/15 serves as the unbreakable heart of this medical grid. Its EIGA-compliant, 100% oil-free guarantee ensures absolutely pure, medical-grade breathable oxygen, while the immense 2820 Nm³/h volume easily supports thousands of ventilators, surgical suites, and ICU beds simultaneously across the entire metropolis.
8. Global Procurement, Complex Logistics, and Heavy Site Civil Engineering
Executing a successful procurement strategy for a colossal 2820 Nm³/h, ~315 kW, 3-stage, 15-bar machine requires exact engineering diligence, extending far beyond simply signing a standard B2B purchase order. The physical installation of the massive 3ZW-47/15 requires strict, heavy-duty site civil preparation. When dealing with a massive reciprocating mass pushing against 15 bar of resistance at staggering speeds, the fundamental engineering focus shifts entirely to managing immense dynamic rod loads and highly destructive low-frequency kinetic vibration.
Proper, heavy civil engineering preparation is absolutely mandatory. The machine strictly requires a deeply excavated, dedicated, vibrationally isolated reinforced concrete foundation block. During the initial procurement phase, our senior engineering team provides exhaustive, dimensionally accurate 3D civil foundation CAD blueprints. The concrete block must be poured precisely, incorporating deep-set, ultra-heavy-duty J-style anchor bolts. The mass of the concrete block is mathematically calculated by our engineers to be typically 4 to 5 times the total static weight of the entire massive compressor skid, an immense mass strictly required to effectively absorb and completely nullify the low-frequency kinetic vibrations that would otherwise literally tear apart the surrounding factory’s high-pressure 15-bar pipework.
For global logistics, our standard manufacturing lead time is exceptionally lean for heavy-duty equipment of this sheer scale—averaging 100 to 120 days from final order confirmation to comprehensive Factory Acceptance Testing (FAT). To guarantee absolute zero downtime over the machine’s multi-decade lifecycle, we strongly advise international clients (especially in remote industrial hubs like the Russian/CIS market, interior South America, or the Middle East) to purchase our comprehensive “5-Year Turnkey Operational Spare Parts Kit” concurrently. By shipping highly dense consumable parts (massive PTFE rings, oversized high-pressure PEEK valves) inside the original heavy-timber crating with the main compressor, clients entirely bypass all future international shipping costs and the highly costly delays of reactionary cross-border high-pressure procurement cycles.
9. Strategic Value Comparison vs. Legacy Western Monopoly Brands
Astute EPC Directors, Chief Chemical Engineers, and global procurement directors are rapidly recognizing that paying 400% to 500% premiums for a legacy brand name decal does not mathematically equate to better thermodynamic performance or higher safety metrics. The 3ZW-47/15 offers a highly competitive CAPEX structure, yielding an extremely fast return on investment (ROI) for massive private and public works projects transitioning away from liquid oxygen dependency. Furthermore, while legacy European brands frequently quote 14 to 18 months for manufacturing a mega-machine of this massive 2820 Nm³/h complexity—causing massive, highly destructive delays in critical plant construction projects—our agile manufacturing capabilities deliver the finished, heavily tested skid in under 120 days. Long-term OPEX is massively slashed, as we supply factory-direct OEM 15-bar rated spare parts at fair, transparent prices, entirely eliminating the monopolistic markups imposed by regional legacy distributors.
10. Executive Technical FAQ: 3ZW-47/15 Mega-Volume Deployment
To fully support rapid, deep engineering evaluation by global EPC firms, massive heavy fabrication planners, and chemical process designers, our senior technical team has exhaustively distilled the ten most critical, highly technical inquiries regarding the deployment of the massive 2820 Nm³/h, 15 bar 3ZW-47/15 compressor system.
1. Why is a 3-Stage architecture used for 15 bar when some competitors claim they can do it in 2 stages?
2. How does the compressor flawlessly synchronize a massive 2820 Nm³/h intake with a VPSA generation plant?
3. What is the expected lifespan of the giant PTFE piston rings under the brutal friction of 15 bar and massive flow rates?
4. How does the elongated distance piece guarantee 100% oil-free purity per strict EIGA regulations?
5. Can this massive ~315 kW machine be fully winterized for severe cold-climate deployments in the Russian/CIS market?
6. Exactly how does integrating a massive 315 kW Variable Frequency Drive (VFD) slash long-term chemical plant OPEX?
7. Why is aerospace-grade PEEK (Polyether ether ketone) strictly required for the massive 15-bar gas valves?
8. How does the automated emergency shutdown (ESD) system specifically protect a petrochemical facility?
9. What are the massive specific civil engineering challenges for anchoring a ~315 kW 3-Stage Z-Type machine?
10. How do you integrate this massive 3-stage medium-high pressure compressor into a modern, centralized mega-plant DCS?
Command Mega-Volume 15-Bar Transfer with Absolute Reliability
Power your colossal Syngas gasification networks, massive non-ferrous smelting flash furnaces, and sprawling mega-hospital centralized grids with the unrelenting 2820 Nm³/h, 15-bar capacity of the 3ZW-47/15. Secure world-class 100% absolute oil-free 3-stage compression, unbeatable heavy-duty Z-Type endurance, and highly disruptive factory-direct pricing today.
Request a Factory-Direct Technical Quote
Our dedicated senior fluid dynamics engineering team will rigorously review your specific O2 generation mass flow requirements, critical 15-bar velocity metrics, and site civil engineering constraints, and respond strictly within 24 hours with mathematically verified 3-stage sizing data, 3D CAD foundation schematics, and fully transparent B2B global pricing.
